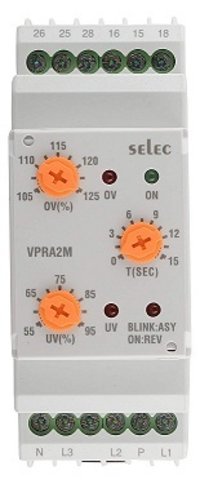

Selec 900VPR-2-280/520V Protection Relay

922 INR/Piece

Minimum Order Quantity : 1 Pieces

Get a Price/Quote

Request To Call Back

Selec 900VPR-2-280/520V Protection Relay Price & Specifications

Working Temperature -20A C to +55A C

Weight Approx. 120g

Usage Phase sequence and voltage protection for three-phase systems

Theory Electromagnetic Relay

Terminal Type Screw terminals

Supply Terminal L1, L2, L3, N

Size Compact

Rated Voltage 280/520V AC (Ph-N/Ph-Ph)

Protect Feature Phase failure, phase sequence, under & over voltage

Product Type Phase Sequence & Voltage Protection Relay

Power Consumption a 2 VA

Operate Time < 100ms

Mechanical Life >10,000,000 operations

Insulation Resistance >100MIC at 500V DC

Dimension (L*W*H) 90 x 35 x 58 mm

Dielectiric Strength 2kV, 50Hz, 1 min

Contact Resistance a 100mIC

Contact Material Silver alloy

Contact Load 5A at 250V AC / 30V DC (resistive load)

Contact Form SPDT

Color Grey/Orange

Coil Voltage 230V AC (derived from line)

Coil Power a 2 VA

Ambient Temperature -20A C to +55A C

About Selec 900VPR-2-280/520V Protection Relay Detail

Experience gilt-edged reliability and instant savings with the elite Selec 900VPR-2-280/520V Protection Relay. This popular, dominant relay is an ace for modern industrial control panels, motor, and pump protection. Its DIN rail mounting and 1% setting accuracy enhance versatility, while the ultra-fast reset and operate times ensure unwavering operation. LED output indication and robust silver alloy contacts offer seamless monitoring. Compact, lightweight, and with a resilient design, it ensures optimal phase sequence and voltage protection for three-phase systems, meeting Indias diverse industrial demands with a market-leading edge.

Elite Protection for Industrial Excellence

The Selec 900VPR-2-280/520V Protection Relay brings gilt-edged performance to industrial control panels, motor protection, and pump panels. Designed for applications requiring ace precision, it features phase failure, phase sequence, and under/over voltage protection. With an operating temperature range suited for tough environments and DIN rail mounting, this dominantly reliable relay stands out for both general and specialized industrial uses. Its compact size makes it perfect for space-constrained panels, offering seamless integration and elevated protection standards.

Quotation and Certification Advantages for Indian Market

Sample availability and reputable certifications give the Selec 900VPR-2-280/520V significant market value. Request a competitive quotation for the lowest priceideal for dealers, exporters, manufacturers, and service providers across India. As a popular and trusted solution, it serves the main domestic market with consistent quality and compliance. Enhance your industrial installations with a high-performing product that guarantees not just top-tier features, but also significant savings and supply assurance throughout the Indian market.

FAQs of Selec 900VPR-2-280/520V Protection Relay:

Q: How does the Selec 900VPR-2-280/520V Protection Relay enhance safety in three-phase systems?

A: The relay provides advanced protection against phase failure, incorrect phase sequence, and under or overvoltage, thereby preventing equipment damage and ensuring reliable system performance.

Q: What are the key features that make this protection relay gilt-edged for industrial applications?

A: It offers 1% setting accuracy, ultra-fast reset and operate times, LED status indication, and wide operating temperature capability, making it dominant for robust industrial settings.

Q: Where is the Selec 900VPR-2-280/520V ideally installed?

A: It is mainly used in industrial control panels, motor protection setups, and pump panels, particularly suited for installations requiring reliable phase sequence and voltage monitoring.

Q: When should I consider using this specific relay model?

A: Use this relay when you require immediate response to voltage fluctuations or phase failures within three-phase AC systems, ensuring safety and minimizing downtime.

Q: What is the process for obtaining a sample or quote for this relay in India?

A: You can request a sample or a competitive quotation from authorized dealers, suppliers, or distributors across India, with assurances of competitive prices and certified quality.

Q: How does the output indication system benefit users?

A: The built-in LED status indication provides instant visual confirmation of relay operation, allowing users to quickly assess system status and implement timely interventions if needed.
