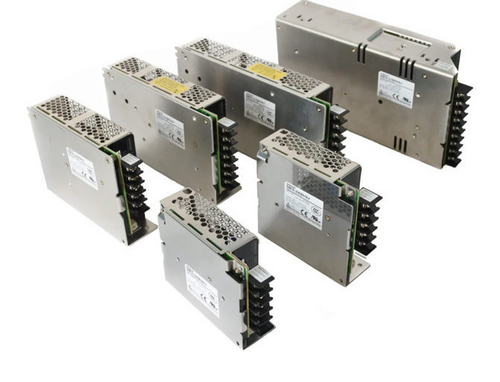

Omron S8JC-ZS10024CD-AC2 SMPS

1 INR/Piece

Minimum Order Quantity : 1 Pieces

Get a Price/Quote

Request To Call Back

Omron S8JC-ZS10024CD-AC2 SMPS Price & Specifications

Working Temperature -25A C to +50A C

Weight 550 g

Voltage Protection Overvoltage, Overcurrent, Short Circuit Protection

Storage Temperature -25A C to +65A C

Rated Power 100 W

Rated Current 4.5 A

Product Type Switch Mode Power Supply (SMPS)

Power Supply AC-DC

Power Factor a Y 0.4

Phase Single Phase

Output Type Single Output

Output Power 100 W

Output Frequency 50/60 Hz

Output Current 4.5 A

Operating Temperature -25A C to +50A C

Noise Level a 50 mVp-p

Material Metal (enclosure)

Line Regulation a 0.5%

Input Voltage 85-264 VAC, 120-370 VDC

Features Compact size, High Reliability, Universal AC input

Efficiency Over 80%

Current Range 0-4.5 A

Cooling Method Convection Cooling

Connector Type Screw Terminal

Application Industrial Automation, Control Panels, Factory Equipment

About Omron S8JC-ZS10024CD-AC2 SMPS Detail

Omron S8JC-ZS10024CD-AC2 SMPS -Dealer, Supplier

We are dealer andsupplier of Omron S8JC-ZS10024CD-AC2 SMPS in India, Mumbai, Delhi,Ahmedabad, Chennai, Kolkata, Pune, Nashik, Aurangabad, Nagpur Vapi,Silvassa, Surat, Vadodara, Rajkot, Gandhidham, Morbi, Indore, Bhopal,Faridabad, Ghaziabad, Noida, Gurgaon, Coimbatore, Bangalore,Hyderabad, Kanpur, Goa, Visakhapatnam, Cochin, Ernakulam, Ludhiana,Chandigarh, Baddi, Dehradun, Sangli, Satara, Ichalkarnji, Solapur,Kupwad, Kolhapur, Pimpri, Chinchwad, Jalgaon, Surat, Baroda, Morbi,UAE, Bangladesh, Nepal, Bhutan, Dubai, Saudi Arabia, United ArabEmirates, Abu Dhabi, Bahrain, Qatar, Muscat, Oman, Sri Lanaka, SouthAfrica, Myanmar, Thailand, Vietnam, Jakarta, Indonesia.

We are dealer,supplier of various manufacture of Omron Proximity Sensor, OmronProximity Switch, Omron Sensor, Omron Photo Sensor, OmronPhotoelectric Sensor, Omron SMPS, Omron Power Supply, Omron PLC,Omron HMI, Omron RFID Sensor, Omron Servo Drive, Omron Servo Motor,Omron Inverter, Omron Drive, Omron Smart Vision Sensor, Omron SafetyRelay, Omron Safety Light Curtain, Omron Safety Switch, Omron FiberSensor, Omron Encoder, Omron Temperature Controller, Omron Timer,Omron Counter, Omron Level Controller, Omron Relay Terminal, OmronSolid State Relay, Omron Limit Switch in India.

Compact and Versatile Power Solution

With a compact 50 mm 91 mm 160 mm design, the Omron S8JC-ZS10024CD-AC2 fits seamlessly into a range of industrial automation setups. Its universal AC input and single-phase output makes it suitable for use in control panels, production lines, and factory equipment. The robust metal enclosure further protects against environmental impacts, ensuring long-term, reliable operation.

Superior Performance for Industrial Demands

The S8JC-ZS10024CD-AC2 offers dependable 24 V DC output with a maximum current of 4.5 A, supporting critical automation processes with minimal ripple and noise ( 120 mVp-p). Over 80% efficiency and comprehensive protection features-including overvoltage, overcurrent, and short circuit protection-ensure safe and stable operation in varied electrical infrastructures.

FAQ's of Omron S8JC-ZS10024CD-AC2 SMPS:

Q: How is the output voltage of the Omron S8JC-ZS10024CD-AC2 adjusted?

A: The output voltage can be fine-tuned within the range of 21.6 to 26.4 V DC using an adjustable control located on the unit. This allows for flexibility to accommodate different load requirements in industrial applications.

Q: What types of protection does this SMPS provide?

A: The S8JC-ZS10024CD-AC2 features integrated overvoltage, overcurrent, and short circuit protection. These safeguards help prevent equipment damage and maintain stable operation, especially in environments prone to voltage fluctuations.

Q: When should I use the Omron S8JC-ZS10024CD-AC2 power supply?

A: This power supply is ideal for use in industrial automation, control panels, and factory equipment where reliable 24 V DC power and high efficiency are needed. It is suitable for both new installations and upgrades in various industrial settings.

Q: Where should the unit be installed for optimal performance?

A: Install the S8JC-ZS10024CD-AC2 in a well-ventilated panel with adequate space for convection cooling. Avoid locations with excessive dust, moisture, or vibration to ensure stable operation and longevity.

Q: What benefits do the compact size and convection cooling offer?

A: Its compact size facilitates easy integration into crowded panel spaces, while convection cooling operates silently without fans, reducing maintenance and the risk of mechanical failure.

Q: How is wiring performed for this power supply?

A: Connection is made through screw terminals, simplifying installation and ensuring secure electrical contact. This setup suits a wide range of wiring standards used in industrial environments.

Q: What factors enhance the reliability of this power supply in industrial settings?

A: Key factors include its robust metal enclosure, wide input voltage range, comprehensive protection features, and stable output. These characteristics collectively ensure the S8JC-ZS10024CD-AC2 delivers consistent performance in demanding conditions.
